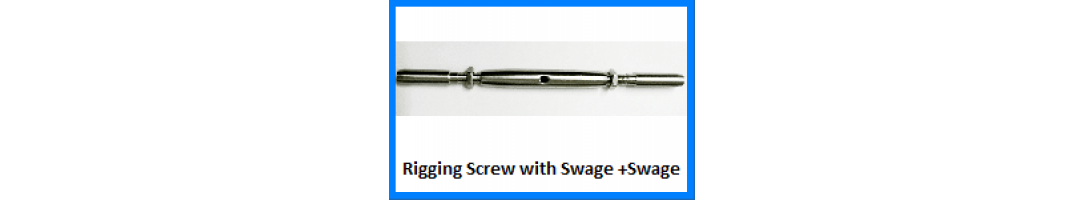

Rigging Screw – Swage /swage

If you’re looking for a tenacious stainless steel rigging screw swage swage terminals that’s really built to last, you might want to make a purchase from our stock of top quality swaged terminals.

Rigging screw swage swage – robust and weather resistant

Also referred to as barrel strainers, balustrading wire adjusters, and closed body turnbuckle tensioner’s it’s vital that these types of rigging screws are always swaged on to wire rope to maintain tension and safety.

They’re designed to work so that that the steel wire rope sit inside the swage end and is then pressed on to the rigging steel wire under high pressure using a hydraulic press. This then makes an inline balustrade or rigging adjuster.

With sizes available to fit 3mm, 4mm, 5mm, 6mm, and 8mm steel wire rope the only thing you really need to remember is to make doubly sure you’re purchasing the right rigging screw to match the wire rope diameter you’re using. Most commonly put to use in wire rope rigging work for example in the sailing and leisure industries.

Place your order for your rigging screw with swage

Rope Services Direct is pleased to sell rigging screws with swage studs in a broad spectrum of lengths and designs. No matter if you need the screw for securing rigging or for any other work, this type of screw can fulfil all sorts of requirements. For more information or further advice, please make sure you call us on 01384 78004, or feel free to contact us via web form.

Thread Dia.Length (mm)Wire Dia. (mm)
M62054
M82354
M102705
M123306
M16 8
