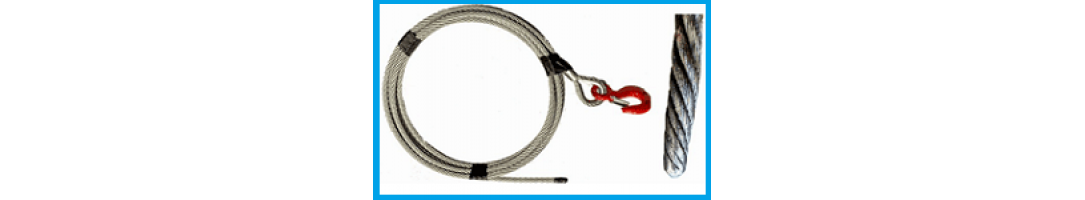

Winch Cable

Rope Services Direct supply a wide range of winch cables. The 7x19 construction in galvanized steel is the most popular choice for winch cable and we offer various diameters from 6mm up to 13mm and lengths up to 30 metres as standard. Typically terminated with a fuse and taper at one end and various fitting options for the other, anchoring end. Custom options are also often available, just get in touch with the Rope Services Direct team.

When it comes to choosing the right cable for your winch, 7x19 galvanized wire rope stands out as one of the most popular and reliable options available.

All you need to know about winch cable

A Winch, whether manual or powered will need a wire rope cable to complete the winching operation.  There are a huge number of operations where winches are utilized including towing vehicles, rescue objects that are stuck, or to winch items and loads within warehouse settings. Winches are also commonplace on rescue vehicles and also boats, but sea faring vessels may use synthetic rope rather than wire rope.

The key with winch cable is that it needs to be strong and flexible, because it will  be handling heavy loads whilst also needing to wind around the winch drum.  It’s not just lifting  and pulling capabilities that need to be considered. Factors such as elasticity, flexibility, sturdiness and the transferring of energy all need to be thought about with any winch.

7x19 Galvanized Winch Rope Construction

7x19 construction rope offers the right amount of flexibility to be wound around the drum of a winch and has good crush resistance. The 7x19 refers to the number of wires and strands that make up the rope, therefore this rope has 7 main strands that are twisted to form the rope, each of the 7 strands is made up of 19 smaller wires that are twisted into a strand.

For this reason, our 7x19 winch cable is designed to be very robust, and strong whilst offering the necessary amount of flexibility. Being galvanised means the cable has really good protection against rust and corrosion, however depending on where it will be used (i.e. marine environments) the 7x19 stainless steel option may be better suited.

We can supply 2 different tensile strength rope, the first is the most popular 1960 strength rope which is a little harder than our second option - the 1770 strength rope. See all the details in the specification tables on the relevant product page.

We safely design, manufacture and test our rope products onsite, ensuring that we can guarantee their safety to our customers. Visit the about us page to find out more. Part of this testing process will involve proof loading. So our products will more than do what they say on the tin! Individually manufactured, each item allows full trace-ability of products.

Winch cable end terminations

We can also supply hooks, shackles, thimble eye and other termination options for your winch rope and cables to ensure that you are able to use them for a wide variety of operations. These are necessary in order to make your ropes with winches the finished product; without it, it’s just rope! For example, our strong and robust hooks can be used to latch onto vehicles, guarantee a safe winching operation.

We will ensure that whatever fitting you choose, it has been safely pressed onto your winch rope, creating an end termination that will last. For the ends of rope that don’t require a fitting, and need to fit into the winch recess our rope team will fuse and taper the end; this will stop the cable unravelling whilst also creating a smoother finish foe easier installation. We can also  manufacture special assemblies to suit your needs.

Unsure of what the right type of end fitting is for you? You can find all of our contact details listed below.

Proper Rope Care and Maintenance

The proper care and maintenance will extend the life of your 7x19 galvanized winch cable. After each use, especially in dirty or corrosive environments, clean the cable with fresh water and allow it to dry completely.  Apply a light coating of appropriate wire rope lubricant periodically to help protect the internal wires and maintain flexibility.

Inspect the cable regularly for broken wires, kinks, or areas where the galvanized coating has worn away. Store the cable in a dry location when not in use, and avoid sharp bends or kinks that can damage the internal structure.

When to Replace Your Winch Cable

Even the best-maintained cable will eventually need replacement. Replace your 7x19 galvanized wire rope when you notice multiple broken wires, significant wear, kinking, or corrosion that has penetrated through the galvanized coating. A damaged cable is not just ineffective – it can be dangerous.
