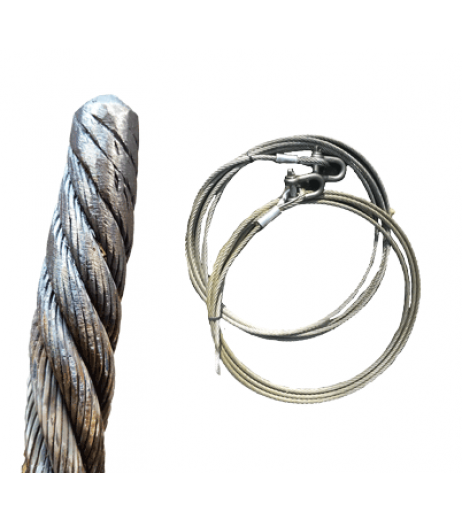

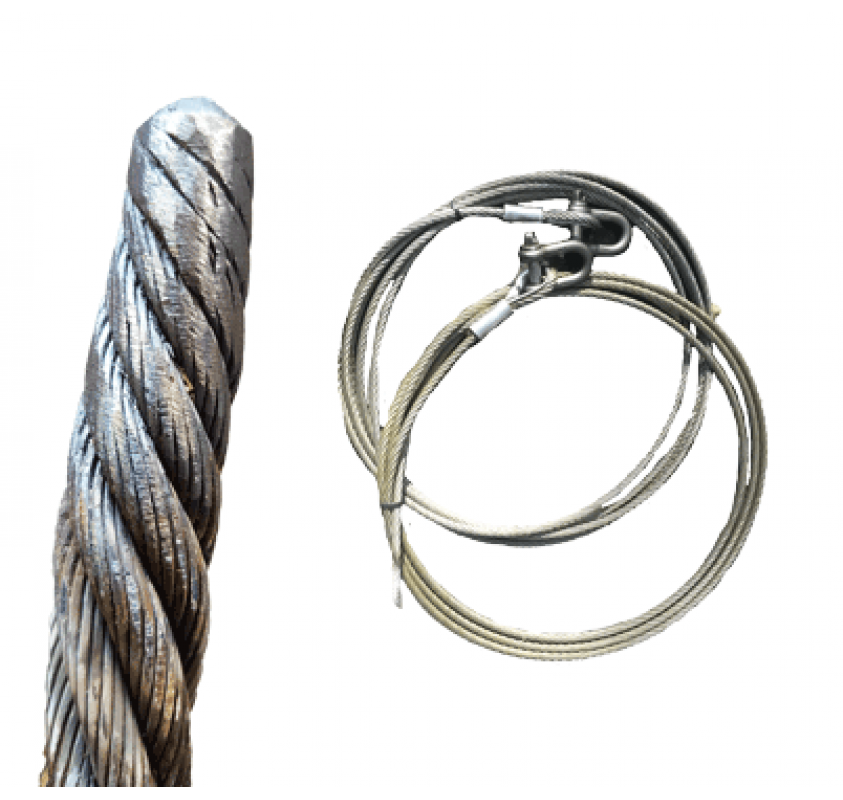

Our 6mm winch cable is made from 7x19 construction galvanised wire rope n lengths up to 30 metres as standard.
This 6mm winch cable offers a good combination or strength, flexibility and corrosion resistance and would make a good winch replacement cable should your winch require this size of rope/cable.
Whether its a boat winch, trailer winch, vehicle recovery system or workplace winch, the available lengths provide flexibility for different requirements.
Available in lengths from 10m up to 30 metres, these 6mm cables suit a wide range of winches and applications. Whilst one end of the rope/cable will be fuse and tapered in order to smoothly fit in the winch recess and prevent fraying.
The opposite end offers versatility with three fitting choices to suit the 6mm cable:
Safety Hook: Perfect for quick connections with built-in safety latches
Shackle: Provides a secure, removable connection point for various hardware
Thimble Eye: Creates a reinforced, structured loop that prevents rope wear when used with shackles or hooks.
Wire rope cables are our speciality, thus we can supply many different diameters of 7x19 construction galvanized rope. This 6mm version is our smallest and 13mm the largest diameter we offer as standard online. If you would like alternative ends to what you see here then please get in touch, The riggers in our rope workshop can usually help with custom wire rope assemblies.
Tensile Strength | 1960 (standard) | 1770 (on request) | |||
Diameter | KG/100M | Kn | KG | kN | KG |
6 | 13.72 | 25.5 | 2604 | 23.1 | 2351 |
Minimum Breaking Force Factor | Nominal Length Mass Factor | ||||
K= 0.362 | W= 0.381 |
