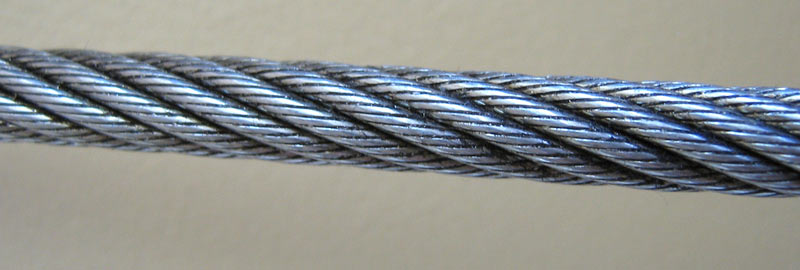

6x36 IWRC Compacted Wire Rope
Compacted wire rope is rope which has been constructed in the same manner as other steel wire ropes equipment, except it has been tightly compacted together. If you want to find out more about the benefits of this type of construction, please read on below where you will find information regarding the 6x36 IWRC Compacted Wire Rope. Rope Services Direct can supply many different diameters from 8mmm to 52mm of this 3x36 compacted rope, see the table below for more details.
8mm 6x36 Compacted Wire Rope
POA
Why 8mm 6x36 Compacted Wire Rope with IWRC? This compacted rope is less of ..
9mm 6x36 Compacted Wire Rope
POA
9mm 6x36 Compacted Wire Rope - IWRC The smoothness of compacted rope is ..
10mm 6x36 Compacted Wire Rope
POA
Steel Cable Variants and Specifications There are differences between the c..
11mm 6x36 Compacted Wire Rope
POA
Key Features of the IWRC 11mm 6x36 compacted wire rope? A steel core forms ..
12mm 6x36 Compacted Wire Rope
POA
Choosing your 12mm 6x36 compacted wire rope - IWRC With this type of compac..
13mm 6x36 Compacted Wire Rope
POA
13mm 6x36 Compacted Wire Rope The 6 bundles of 36 wires that surround the centr..
14mm 6x36 Compacted Wire Rope
POA
Main Advantages of the 14mm 6x36 compacted wire rope Most customers looking..
16mm 6x36 Compacted Wire Rope
POA
16mm 6x36 Compacted Wire Rope Qualities This 16mm diameter rope has undergo..
18mm 6x36 Compacted Wire Rope
POA
Basic Benefits of the 18mm 6x36 compacted wire rope. The process that this ..
19mm 6x36 Compacted Wire Rope
POA
19mm 6x36 Compacted Wire Rope IWRC There are a few things to note about thi..
20mm 6x36 Compacted Wire Rope
POA
Central Features of the 20mm 6x36 Compacted Wire Rope If you need to lug lo..
22mm 6x36 Compacted Wire Rope
POA
Key Qualities of the 22mm 6x36 Compacted Wire Rope With compacted outer str..
The benefits and uses for 6x36 IWRC Compacted Wire Rope
6x36 refers to the number of bundles and strands within the rope respectively. The IWRC refers to ‘independent wire rope core’, which means another construction of this equipment will sit internally, with the 6x36 strands and bundles making up the outer core. This IWRC will have its own numbered construction, say 7x7, which refers to 7 bundles and 7 strands. This means that you will effectively be left with a piece of equipment that is 6x36 + 7x7. We also stock an 8x25 compacted rope.
Once this has been constructed, the whole thing is run through a special machine in order to compact it tightly
together.
Key Benefits to the 6x36 compacted steel cable.
Increased lifting capabilities
Increased levels of strength
Reduced internal friction and abrasion damage
Easier to handle thanks to a smooth and more well-rounded finish
A much lower level of wire breakages
These benefits mean that 6x36 IWRC compacted wire rope is perfect for heavier lifting applications, or operations that have high breaking loads.
Order your 6x36 IWRC Compacted Wire Rope today
To place an order for this equipment, please give us a call on 01384 78004, or find all of our contact details here. If you are looking for a compacted rope for crane use then try our crane rope pages.
1770 | 1960 | 2160 | |||||
Diameter | kg/100M | kN | Kg | kN | Kg | kN | Kg |
8 | 30.59 | 45.9 | 4,677 | 50.8 | 5,179 | 56 | 5,707 |
9 | 38.72 | 58.1 | 5,919 | 64.3 | 6,554 | 70.9 | 7,223 |
10 | 47.8 | 71.7 | 7,307 | 79.4 | 8,092 | 87.5 | 8,917 |
11 | 57.84 | 86.7 | 8,842 | 96 | 9,791 | 105.9 | 10,790 |
12 | 68.83 | 103.2 | 10,523 | 114.3 | 11,652 | 126 | 12,841 |
13 | 80.78 | 121.1 | 12,349 | 134.2 | 13,675 | 147.8 | 15,070 |
14 | 93.69 | 140.5 | 14,322 | 155.6 | 15,860 | 171.5 | 17,478 |
16 | 122.37 | 183.5 | 18,707 | 203.2 | 20,715 | 223.9 | 22,829 |
18 | 154.87 | 232 | 23,676 | 257 | 26,217 | 283 | 28,892 |
19 | 172.56 | 259 | 26,379 | 287 | 29,211 | 316 | 32,192 |
20 | 191.2 | 287 | 29,229 | 318 | 32,367 | 350 | 35,670 |
22 | 231.35 | 347 | 35,368 | 384 | 39,164 | 423 | 43,160 |
24 | 275.33 | 413 | 42,090 | 457 | 46,608 | 504 | 51,364 |
26 | 323.13 | 485 | 49,398 | 537 | 54,700 | 591 | 60,282 |
28 | 374.75 | 562 | 57,290 | 622 | 63,439 | 686 | 69,913 |
30 | 430.2 | 645 | 65,766 | 714 | 72,826 | 787 | 80,257 |
32 | 489.47 | 734 | 74,827 | 813 | 82,859 | 896 | 91,314 |
34 | 552.57 | 829 | 84,473 | 918 | 93,541 | 1,011.00 | 103,086 |
36 | 619.49 | 929 | 94,703 | 1,029.00 | 104,869 | 1,134.00 | 115,570 |
38 | 690.23 | 1,035.00 | 105,518 | 1,146.00 | 116,845 | 1,263.00 | 128,768 |
40 | 764.8 | 1,147.00 | 116,917 | 1,270.00 | 129,468 | 1,400.00 | 142,679 |
42 | 843.19 | 1,265.00 | 128,901 | 1,400.00 | 142,738 | 1,543.00 | 157,303 |
44 | 925.41 | 1,388.00 | 141,470 | 1,537.00 | 156,656 | 1,694.00 | 172,641 |
46 | 1,011.45 | 1,517.00 | 154,623 | 1,680.00 | 171,221 | 1,851.00 | 188,693 |
48 | 1,101.31 | 1,652.00 | 168,361 | 1,829.00 | 186,434 | 2,016.00 | 205,458 |
50 | 1,195.00 | 1,792.00 | 182,683 | 1,985.00 | 202,294 | 2,187.00 | 222,936 |
52 | 1,292.51 | 1,938.00 | 197,590 | 2,146.00 | 218,801 | 2,365.00 | 241,127 |
Minimum Breaking Force Factor | Nominal Length Mass Factor | ||||||
K= 0.405 | W= 0.478 |
