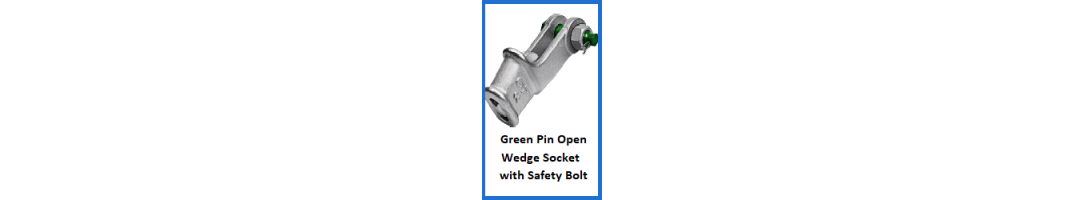

Green Pin Open Wedge Socket with Safety Bolt

Rapid Enquiry Form

Green Pin Open Wedge Socket with Safety Bolt

Need a semi permanent but strong connection for your wire rope? We have numerous non-permanent fittings available such as rope gripsshackles and swageless terminals; this page is dedicated to the green pin open wedge socket with safety bolt.

Green pin open wedge socket with safety bolt – hardy and easy to usegreen pin open wedge socket diagram

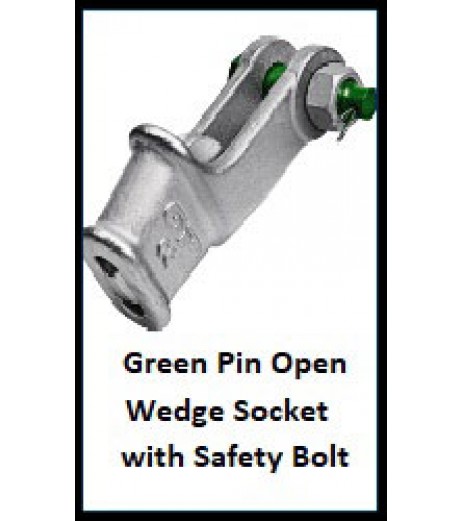

green pin open wedge socket with safety boltThere are many uses for a green pin open wedge socket with safety bolt, they are used for marine, fishing, engineering and many other industries. This type of fixing is excellent when used with a choice of different wire ropes. First-rate for both small and larger applications, they are also possess excellent minimum breaking load strengths. The addition of the safety bolt with this product ensures optimum safety when anchoring the socket. The wedge secures the wire rope within the cone of the socket body, the ends are usually secured together with a rope grip for extra security from slipping out.

Having such a good choice of sockets can be daunting. That’s why you may need to check out all the options before buying. With this in mind, now is a good time to look at our wide variety of lifting gearwire rope sockets and ferrules too.

Go ahead and order your open wedge socket

From our spacious UK location in the heart of the Black Country, Rope Services Direct offers just about every socket or other type of fitting possible for our customers to choose from. Not sure about something? Simply drop us a line on 01384 78004. Or, if you know what you need, place your order here.

Specifications



MBL tons

Dia Wire Rope mm

Length mm

Length To Centre Pin mm

Width mm

Width Inside mm

Pin Dia mm

Side Plate T’ness mm

Eye Dia mm

8

7-8

128

110

76

18

16

9

36

12

9-10

165

142

91

20

20

11

46

20

11-13

175

146

109

25

25

12

57

25

14 – 16

211

176

133

31

30

15

70

40

18 – 19

252

212

145

38

35

16

80

55

20 – 22

288

240

161

44

41

19

95

75

24 – 26

329

274

189

51

50

22

110

90

27 – 29

375

310

208

57

57

25

130

110

30 – 32

423

350

226

63

63

28

146

125

34 – 36

474

400

233

69

65

28

148

150

37 – 39

527

450

246

76

70

30

153

170

40 – 42

580

500

256

76

77

33

160
