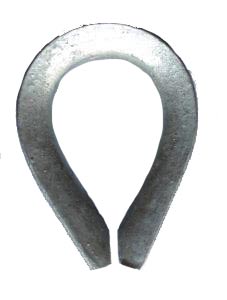

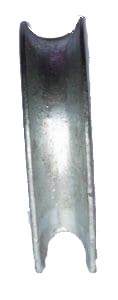

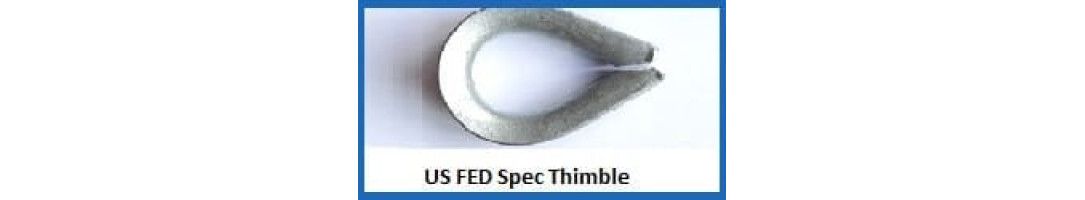

This page is dedicated to a specific type of US Fed Spec thimbles. We’re sure to have it in the right size at Rope Services Direct. If the US federation specification thimble is not the right one for you then browse our other types of rope thimbles, we have a wide range available and can fit them to new or existing wire rope for your convenience. We can also fit or supply a range of alternative rope fittings and also many types of wire rope to suit.
US Fed Spec thimbles are well suited to many applications including engineering operations, gardening and landscape jobs, in sailing, yachting, sculptures
and art work.
Fashioned from weather-proof stainless steel, they are great when used in extremely tough external atmospheres for example in marine air and adverse conditions. This is because they will not rust, tarnish or degrade.
Our US Fed Spec Thimbles are sold in sizes to suit rope diameters from 1/4″ to 1.7/8-2
Due to our extensive knowledge and customer service, at Rope Services Direct we offer US fed spec thimbles in a variety of sizes. To inform us what you need and give us your order, simply take the time to fill out our handy quick form here. Wish to discuss your plans with our team or need us to answer a question? Call us any time by dialling 01384 78004. We would be more than pleased to offer some pointers.
| Diameter Rope inch | Length inch | Width inch | Length Inside inch | Width Inside inch | Thickness Back inch |
| ¼ | 2.3/16 | 1.1/2 | 1.5/8 | 7/8 | 1/16 |
| 5/16 | 2.1/2 | 1.13/16 | 1.7/8 | 1.1/16 | 5/64 |
| 3/8 | 2.7/8 | 2.1/8 | 2.1/8 | 1.1/8 | 7/65 |
| 7/16 | 3.1/4 | 2.3/8 | 2.3/8 | 1.1/4 | 1/8 |
| ½ | 3.5/8 | 2.3/4 | 2.3/4 | 1.1/2 | 9/64 |
| 9/16 | 3.5/8 | 2.11/16 | 2.3/4 | 1.1/2 | 9/64 |
| 5/8 | 4.1/4 | 3.1/8 | 3.1/4 | 1.3/4 | 5/32 |
| ¾ | 5 | 3.13/16 | 3.3/4 | 2 | 7/32 |
| 7/8 | 5.1/2 | 4.1/4 | 4.1/4 | 2.1/4 | 7/32 |
| 1 | 6.1/8 | 4.15/16 | 4.1/2 | 2.1/2 | ¼ |
| 1.1/8 – 1.1/4 | 7 | 5.7/8 | 5.1/8 | 2.7/8 | ¼ |
| 1.1/4 – 1.3/8 | 8.1/16 | 6.13/16 | 6.1/4 | 3.1/2 | ½ |
| 1.3/8 – 1.1/2 | 9 | 7.1/8 | 6.1/2 | 3.1/2 | ½ |
| 1.5/8 | 11.1/4 | 8.1/8 | 8 | 4 | ½ |
| 1.3/4 | 12.3/16 | 8.1/2 | 9 | 4.1/2 | ½ |
| 1.7/8 – 2 | 15.1/8 | 10.3/8 | 12 | 6 | ½ |
