Green Pin Wire Rope Clamps
Green Pin Wire Rope Clamps
Green Pin Wire Rope Clamps

Green Pin Wire Rope Clamps

When you are looking for a highly versatile green pin wire rope clamps, we have a great size choice at Rope Services Direct. Available to suit rope diameters from 3mm up to 78mm with grip sizes from 1/8 inch up to 2 3/4 inch.

  • Product Code: Green Pin Wire Rope Clamps

Call 01384 78004 for price.

Enquire Now

Green pin wire rope clamps – dependable and tough


Green pin wire rope clamps are especially for use in much heavier operations. Primarily required to work with galvanised steel rope or stainless steel rope, you can easily get your hands on many sizes with us. They are exemplary in a broad field of uses in the building, boating and fishing, manufacturing sectors and more.

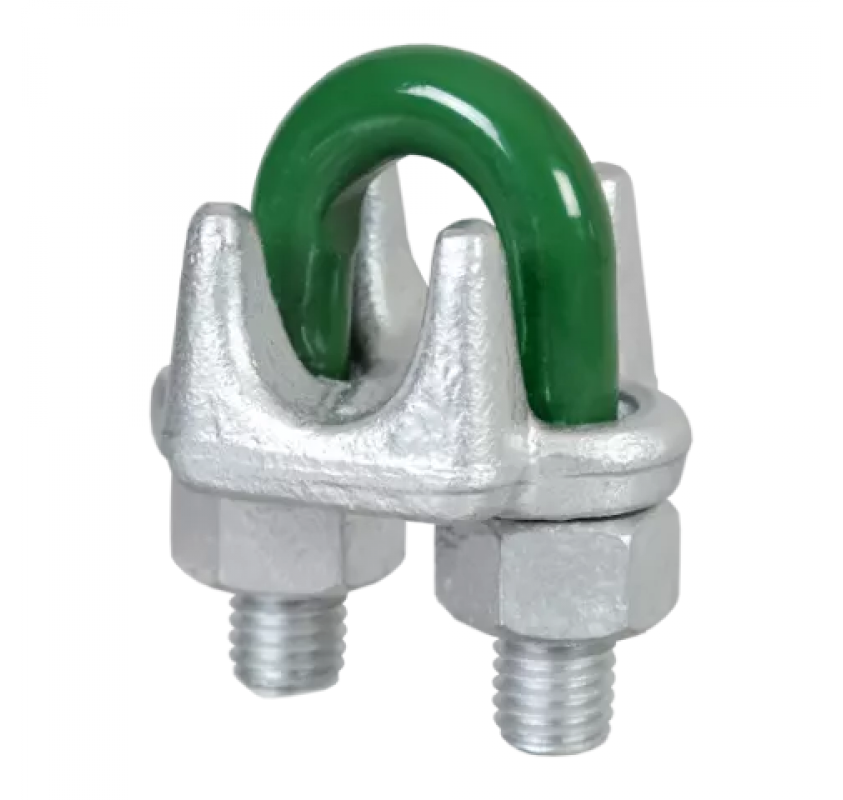

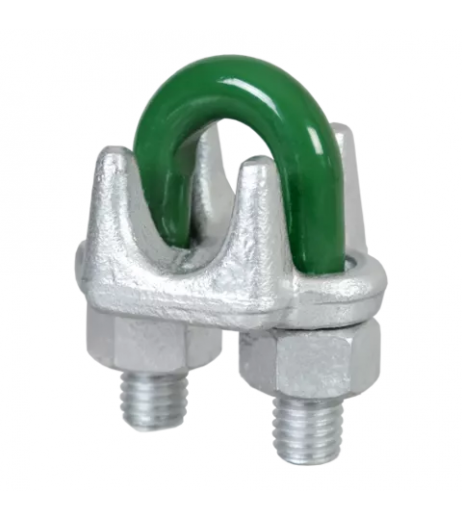

Each bridge/saddle is made from drop forged high tensile steel (SAE 1035 or SAE 1045) whilst the U-bolts are made to SAE 1015 standard. They come with a hot dipped galvanised finish with electro-galvanised finish on the nuts on grips 5,6,8 & 10mm bow diameter, thus suitable for most environments.

Enhanced Safety Features

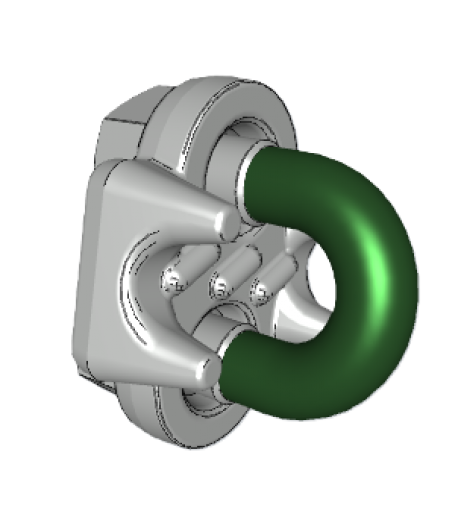

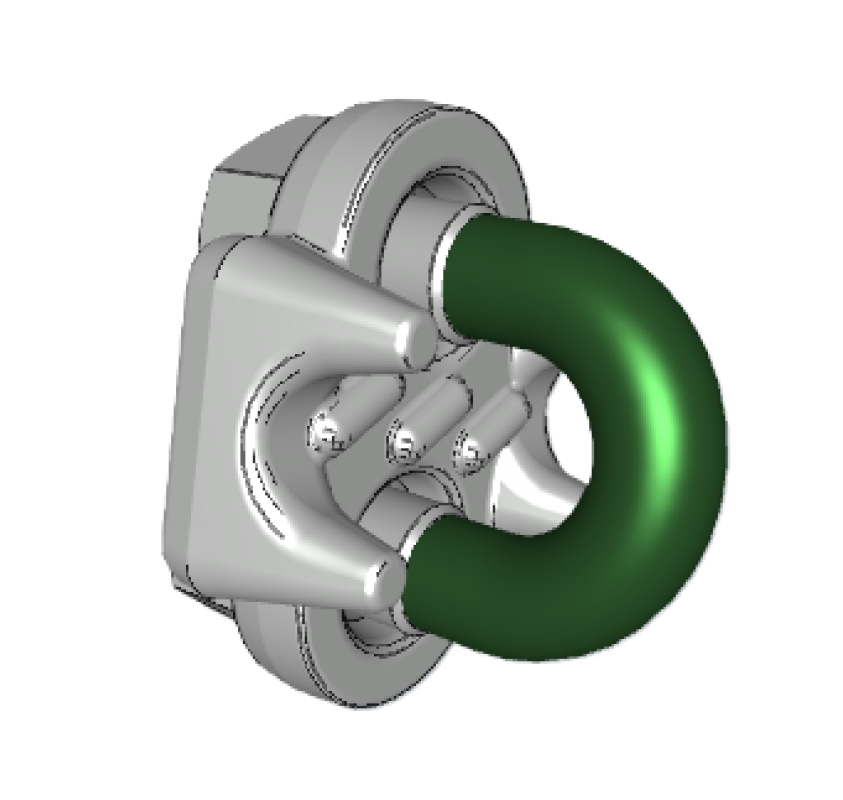

What sets these clamps apart from others is their safety-focused design. The bearing surface of the saddle features specially designed ribs that provide more bite and thus prevents wire rope from sipping. This feature reduces the risk of connection failure, thus providing an additional layer of security when compared to standard rope grips. This can be crucial in rigging applications.

Select your rope grip from us today

From our West Midlands base, Rope Services Direct we are proud to sell many types of green pin wire rope grips for an array of uses. In order to make a purchase, just fill in an order form or call us on 01384 78004 for more advice.

Still not sure? Browse through our other fitting products on offer, we have an extensive selection of wire rope grips as well as wire rope sockets for you to purchase.



For Rope Diameter (mm) diameter   (mm) Bow Length (mm) Inside Width (mm) Thread Length (mm) Base Length  (mm) Base Thickness  (mm) Base Height  (mm) Net Weight (kg)
  a b c d e f g
3-4 5 24 12 11 24 21 10 0.03
5 6 31 15 13 29 24 13 0.07
6-7 8 34 19 13 37 30 18 0.08
8 10 45 22 19 43 33 19 0.12
9-10 11 49 26 19 49 42 25 0.21
11 12 60 30 25 58 46 26 0.33
12-13 13 61 30 25 58 48 31 0.33
14-15 14 72 33 32 63 52 31 0.46
16 14 74 33 32 64 54 36 0.46
18-20 16 86 38 37 72 57 38 0.64
22 19 98 45 41 80 62 40 0.96
24-26 19 108 48 46 88 67 47 1.15
28-30 19 117 51 51 91 73 48 1.27
32-34 22 130 59 54 105 79 56 1.97
36 22 140 60 59 108 79 58 2.07
38-40 22 147 66 60 112 85 64 2.54
41-42 25 161 70 67 121 92 67 3.22
44-46 29 174 78 70 134 97 76 4.18
48-52 32 195 86 78 150 113 85 6.02
56-58 32 213 98 81 162 116 100 7.76
62-65 32 227 105 87 168 119 113 8.62
68-72 32 243 112 91 174 127 124 10.2
75-78 38 271 121 98 194 135 136 12.7

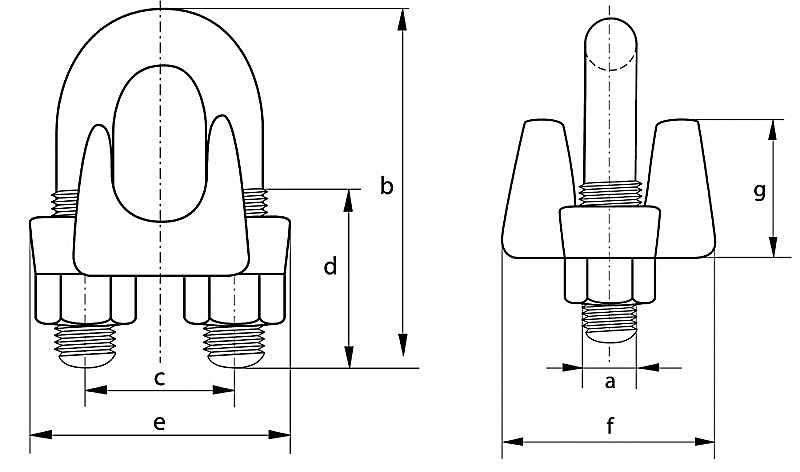

Green Pin Wire Rope Clamps dimensions
