Green Pin Turnbuckle with Jaw & Eye

Green Pin Turnbuckle with Jaw & Eye

Available with up to 34 ton capacities the Green Pin Turnbuckle with Jaw and eye offers a dual connection tensioning device for professional lifting or lashing tasks.


  • Product Code: Green Pin Turnbuckle with Jaw & Eye

Call 01384 78004 for price.

Enquire Now

Green Pin Turnbuckle with Jaw & Eye

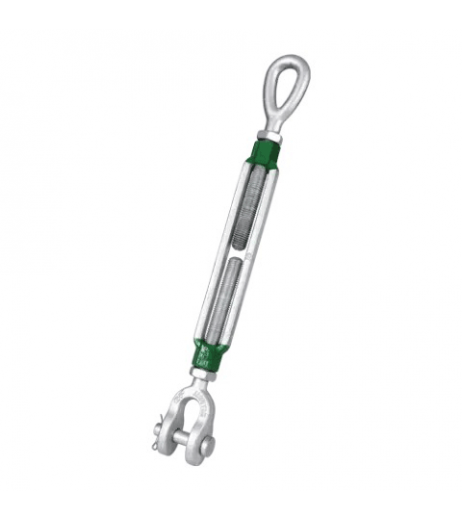

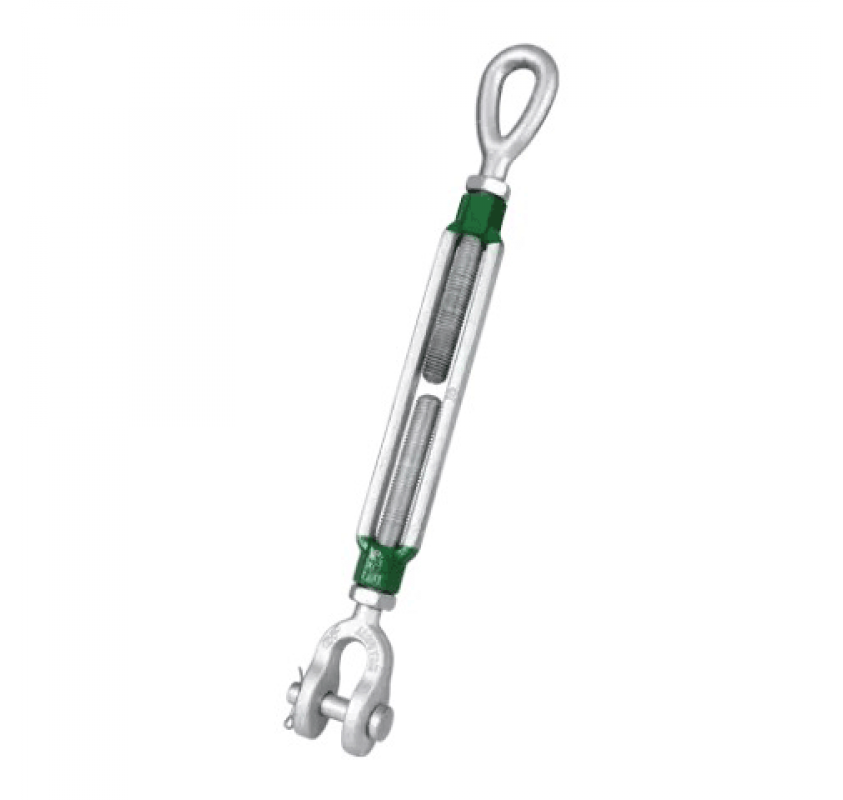

The Green Pin Eye jaw Turnbuckle represents a high quality engineering solution for demanding lifting and lashing applications.

The eye-jaw configuration provides flexibility in attachment methods while maintaining structural integrity under heavy loads. The jaw end fitting incorporates a safety bolt with a cotter pin for additional safety.

Thread diameters and the take up range varies between models, all the details can be found in the specifications tab above.


Professional Rigging Solutions


This versatile turnbuckle features eye-jaw end-fittings and is designed to meet the rigorous standards of ASTM F1145-92, thus ensuring reliable performance.

Manufactured from high tensile drop-forged steel to SAE 1035 or 1045, this turnbuckle delivers exceptional strength and durability.


Hot-dipped zinc coated galvanization provides comprehensive corrosion protection, extending the turnbuckle's service life significantly, and can be used safely in temperature ranges from -20°C to +200°C.

The 5:1 safety factor the minimum breaking load strength is equal to at least 5 times the stated WLL.


Quality Assurance


As with all Green Pin turnbuckles the quality is top notch. Materials and mill test certification can be provided. CE marked and ASTM F1145-92 (previously US Federal specification FF-T-791b) standards are also met.


More rigging options


If this turnbuckle is not quite right for your needs then take a look at the the whole range we have available at Rope Services Direct. Turnbuckles and rigging screws are available in many configurations and materials and you will also find many other fittings available such as shackles, swivel connectors, snap hooks, rope grips, swageless terminals and many more.


Model code

working load limit (ton)

take up (inch)

diameter thread (inch)A

length closed position (mm)B

length open position (mm)C

opening jaw (mm)D

inside length jaw (mm)E

diameter pin jaw (mm)F

thickness eye jaw (mm)G

diameter eye jaw (mm)H

diameter eye (mm)I

inside width eye (mm)J

inside length eye (mm)K

length closed position (mm)L

Net weight (KG)

SSGPGO1006

0,54

6

3/8

283

418

12

21

8

9

21

10

13

29

49

0.52

SSGPGO1206

1

6

½

315

446

16

26

10

11

25

12

18

36

58

0.88

SSGPGO1209

1

9

½

390

598

16

26

10

11

25

12

18

36

57

1.13

SSGPGO1212

1

12

½

466

751

16

26

10

11

25

12

18

36

57

1.37

SSGPGO1606

1,59

6

5/8

363

486

18

32

13

14

33

14

21

45

79

1.55

SSGPGO1609

1,59

9

5/8

438

639

18

32

13

14

33

14

21

45

78

1.61

SSGPGO1612

1,59

12

5/8

514

790

18

32

13

14

33

14

21

45

78

2.17

SSGPGO1906

2,36

6

¾

391

510

24

38

16

16

41

17

26

54

89

2.28

SSGPGO1909

2,36

9

¾

467

663

24

38

16

16

41

17

26

54

89

2.82

SSGPGO1912

2,36

12

¾

542

815

24

38

16

16

41

17

26

54

88

3.16

SSGPGO1918

2,36

18

¾

694

1120

24

38

16

16

41

17

26

54

89

4.1

SSGPGO2212

3,27

12

7/8

583

848

27

42

19

19

48

20

32

61

101

4.1

SSGPGO2218

3,27

18

7/8

735

1153

27

42

19

19

48

20

32

61

101

5.84

SSGPGO2506

4,54

6

1

473

579

31

50

22

20

54

24

37

76

118

4.6

SSGPGO2512

4,54

12

1

624

884

31

50

22

20

54

24

37

76

117

6.17

SSGPGO2518

4,54

18

1

776

1190

31

50

22

20

54

24

37

76

117

7.1

SSGPGO2524

4,5

24

1

928

1494

31

50

22

20

54

24

37

76

116

8.35

SSGPGO3212

6,9

12

1.25

677

950

44

71

29

26

68

29

47

91

145

10.4

SSGPGO3218

6,9

18

1.25

833

1258

44

71

29

26

68

29

47

91

144

11.5

SSGPGO3224

6,9

24

1.25

989

1566

44

71

29

26

68

29

47

91

144

13.2

SSGPGO3812

9,71

12

1.5

716

983

52

71

35

28

80

32

55

106

156

13.9

SSGPGO3818

9,71

18

1.5

871

1290

52

71

35

28

80

32

55

106

160

16.7

SSGPGO3824

9,71

24

1.5

1023

1594

52

71

35

28

80

32

55

106

158

19.7

SSGPGO4518

12,7

18

1.75

979

1356

60

86

41

33

90

38

61

120

197

25.1

SSGPGO4524

12,7

24

1.75

1130

1662

60

86

41

33

90

38

61

120

196

29

SSGPGO5024

16,8

24

2

1208

1728

63

93

51

40

107

46

69

147

230

42

SSGPGO6424

27,2

24

2.5

1343

1899

75

114

57

41

143

51

80

165

274

68.5

SSGPGO6924

34

24

2.75

1399

1953

90

110

70

41

158

57

84

178

284

93

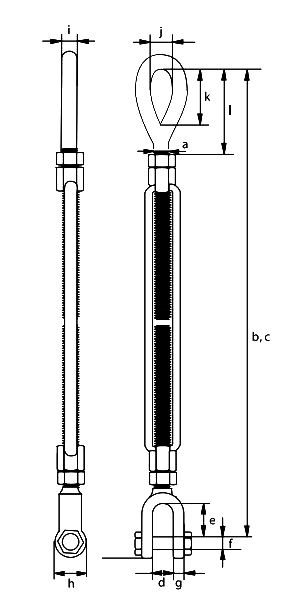

green pin turnbuckle jaw eye dimensions
