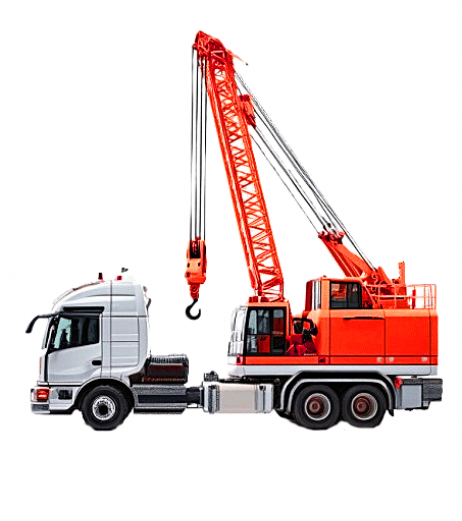

Mobile Crane Hoist Rope Construction

At Rope Services Direct we recognise the need for specific attributes when it comes to mobile crane hoist rope. Rotation resistant properties are particularly important, especially when used for very high lifts, such as achieved on a mobile crane. The special construction prevents the rope from spinning when loaded. The rope strands are laid in multiple layers, each layer is laid in the opposite direction so the outer strands twist one way and the inner strands in the opposite direction, this creates opposing torque to cancel each other out, therefore creates hook and load stability.

Add this together with the compaction process and you get a great all round rope. Compacted rope is pulled through dies to compress the rope, filling in internal voids in each strand, whilst making the strands smaller in diameter with a smoother surface. This all means that smaller rope diameters can be used with a similar breaking strength to a non-compacted rope, and are smoother to handle, run more smoothly over pulleys and are crush resistant.

You will see our chosen mobile crane hoist ropes below, some will have what is known as a Warrington steel core. This means the inner layer is made up from strands of alternating diameters in order to fill valleys or voids between layers; the ropes will nestle together more snugly. A Warrington core provides excellent stability, increased abrasion and fatigue resistance and high breaking strength.

Breakdown of Hoist Ropes for Mobile Cranes

Full specifications can be downloaded above.

KEY - RR = rotation resistant; C = Compacted; RR & C = rotation resistant and Compacted

High Performance Mobile Crane Hoist Ropes

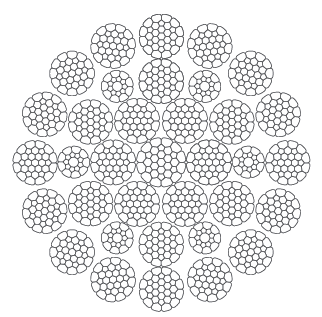

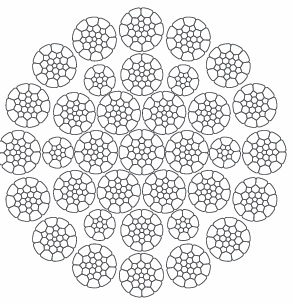

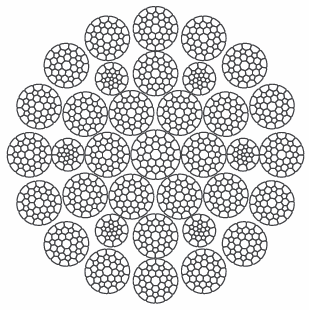

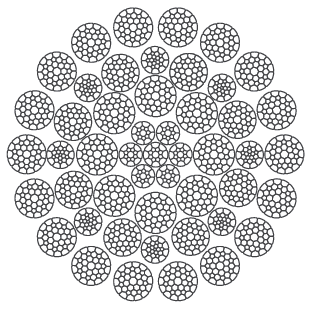

Each of the following rope features compaction and rotation resistance as well as a Warrington core. These three key properties make the rope ideal for high rise hoisting applications.

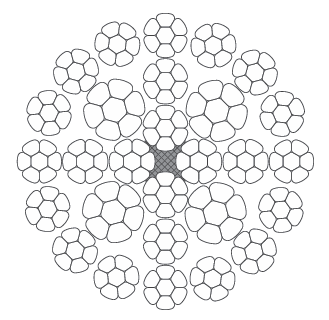

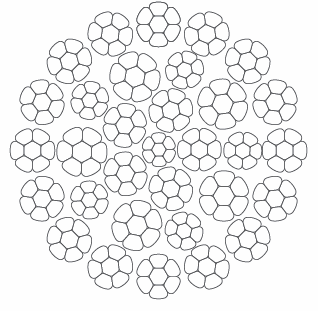

Standard RR & C Rope

High Performance Mobile Crane Hoist Ropes

Each of the following rope features compaction and rotation resistance as well as a Warrington core. These three key properties make the rope ideal for high rise hoisting applications.

More Crane Rope Options

Different cranes require different ropes, some needing multiple, for example a container crane will need a hoist rope, boom rope and trolley rope. Some crane ropes will benefit from plastic filler (PIR) to protect from internal abrasion.

One type does not suit all crane mechanics so consider the options carefully.

Rope Services Direct are always available to answer any questions you may have.
