In the market for a superior quality green pin open wedge socket that’s great value too? Then Rope Services Direct could well mean your search is over!

Green pin open wedge socket – resilient and versatile

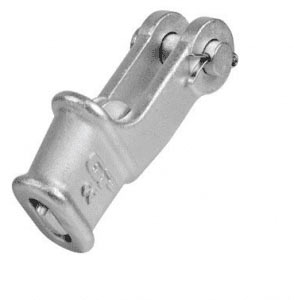

Perfect for a variety of home and garden, marine and commercial arenas, this type of high tensile steel green pin socket is designed to be used alongside any of our wire rope.Green pin open wedge socket

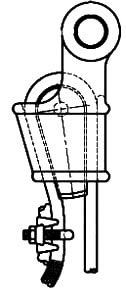

Ideal for warehouse, farming jobs, sailing, fishing and other sports, the high tensile finish provides good resistance to weather. These green pin open wedge socket type fittings consist of a basket/cone and a wedge. They enable you to make a temporary connection to the wire rope with the wedge creating a vice like grip on the rope. The rope passes through the basket, around the wedge and back through the basket and then the wedge is pushed into place, the 2 ends are usually secured with a rope grip as shown in the picture.

With such a lot of sizes and designs of sockets at your fingertips, it’s easy to find yourself confused. View the table below for all the technical specifications and sizes. Our wire rope socketsGreen pin open wedge wire rope socketferrules and selection of rope grips might be worth taking into consideration too as alternatives, or call us so we can help you decide.

Requesting your socket is easy!

Trading from our premises near Birmingham, RSD is very excited to offer a large range of sockets and other fittings to match any purpose – just send us back a quick form and you’ll have your order in no time. Do you need to speak to our team? Then contact our highly trained staff on 01384 78004 any time for support.

Specifications



MBL tons

Dia Wire Rope mm

Length mm

Length To Centre Pin mm

Width mm

Width Inside mm

Pin Dia mm

Side Plate T’ness mm

Eye Dia mm

8

7-8

128

110

51

18

16

9

36

12

9-10

165

142

62

20

21

11

46

20

11-13

175

146

66

25

25

12

57

25

14 – 16

211

176

82

31

30

15

70

40

18 – 19

252

212

95

38

35

16

80

55

20 – 22

288

240

110

44

41

19

95

75

24 – 26

329

274

130

51

51

22

110

90

27 – 29

375

310

145

57

57

25

130

110

30 – 32

423

350

155

63

64

28

146

125

34 – 36

474

400

163

69

64

28

148

150

37 – 39

527

450

178

76

70

30

153

170

40 – 42

580

500

187

76

76

33

160

225

43 – 48

650

550

226

89

89

39

186

280

49 – 52

745

640

257

101

95

46

194

360

54 – 58

785

660

275

114

108

54

230

425

60 – 68

970

835

300

127

121

60

250

460

72 – 76

1150

1000

355

146

133

76

270

625

81 – 86

1252

1100

375

159

140

79

300
