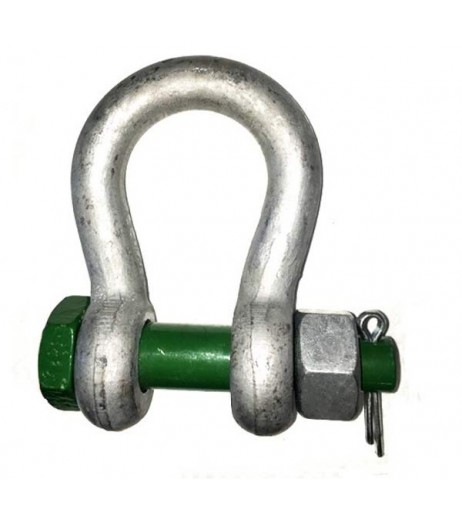

Safety Bolt Alloy Bow Shackle

Need a lifting bow shackle with an extra safe closing mechanism? Try our safety bolt alloy bow shackle. The retaining split pin which is inserted right through the bolt ensures the pin cannot come out until manually removed. This makes them perfect for high vibration areas or where there could be friction on the pin.

Product Code: Safety Bolt Alloy Bow Shackle
Availability: In Stock

Available Options

£2.70

Qty

Description

More about the safety bolt alloy bow shackle

Having one of the highest specs from our large range of lifting shackles these are also called green pin type shackles and are manufactured from high tensile steel at grade 6. Having also been quenched and tempered with a hot dip galvanized finish the wide range of temperatures where they can be safely used is impressive. In fact the range runs from minus 20 C right up to plus 200 C.

The safety bolt alloy bow shackle meets fed spec RRC271 standards and also EN13889 so quality is ensured. We have this type of alloy bow shackle available with working load limits from 0.5 tonne up to 85 tonne with incremental dimensions to suit. The table below will tell you more details. We can also supply these in the Dee shackle type format.

Contact Rope Services Direct

01384 78004 is our phone number should you wish to call us. Emailing us can be done in one of 2 ways; either via the rapid enquiry form or the contact us page. Placing an order couldn’t be easier, a member of our team will take your order details and payment, the order is processed quickly and you should receive your fittings within a few days, sometimes next day.

WLL	Bow Dia	Pin Dia	Eye Dia	Width Eye	Width Inside	Length Inside	Width Bow	Length	Width Bow
tons	a mm	b mm	c mm	d mm	e mm	f mm	g mm	h mm	j mm
0.33	5	6	12	5	9.5	22	16	36	26
0.5	7	8	16.5	7	12	29	20	48.5	34
0.75	9	10	20	9	13.5	32	22	56	40
1	10	11	22.5	10	17	36.5	26	63.5	46
1.5	11	13	26.5	11	19	43	29	74	51
2	13.5	16	34	13	22	51	32	89	58
3.25	16	19	40	16	27	64	43	110	75
4.75	19	22	46	19	31	76	51	129	89
6.5	22	25	52	22	36	83	58	144	102
8.5	25	28	59	25	43	95	68	164	118
9.5	28	32	66	28	47	108	75	185	131
12	32	35	72	32	51	115	83	201	147
13.5	35	38	80	35	57	133	92	227	162
17	38	42	88	38	60	146	99	249	175
25	45	50	103	45	74	178	126	300	216
35	50	57	111	50	83	197	138	331	28
42.5	57	65	130	57	95	222	160	377	274
55	65	70	145	65	105	260	185	433	310
