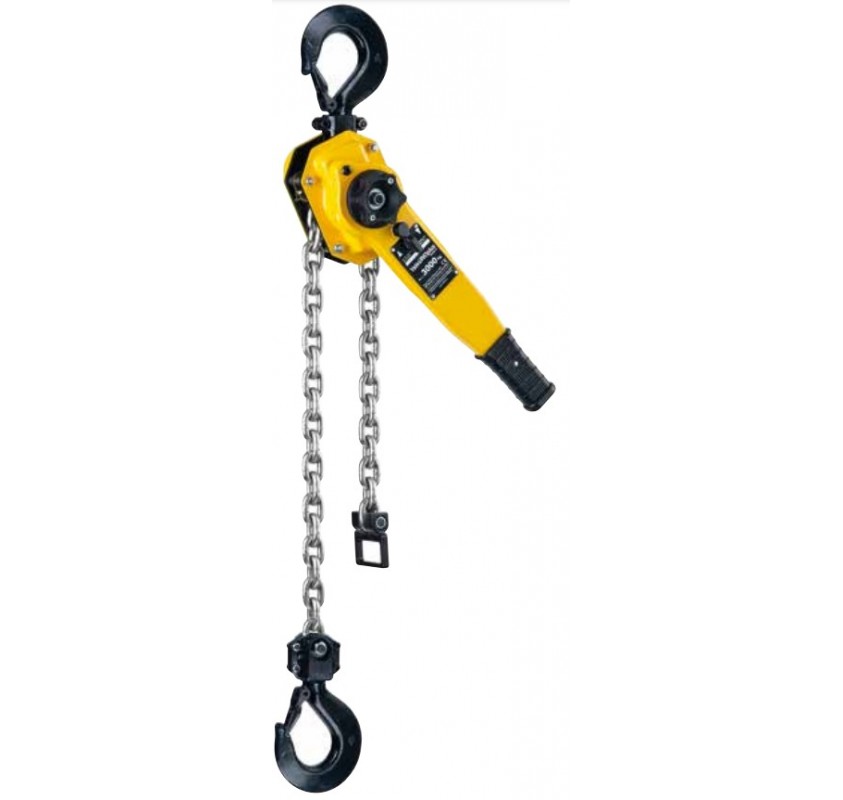

Yale UNO Plus Ratchet Hoist Features

This light and compact ratchet hoist has some great features to make operation and maintenance easy. The chain stripper, guide and brake components have good corrosion protection, thus a longer working life under normal conditions.

Featuring a robust steel framework and hand wheel, rugged chain rollers and a screw and disc type brake this is a hard wearing hoist.

Other features include a free chaining mode, chain end stops, forged swivel hooks with safety latches and a closed chain guide and load sheave to protect against slipping. The lever/handle has a rubberised coating for a good hand grip.

There are 3 models options with capacities of 750kg, 1500kg & 3000kg all with a 1.5 metre height of lift as standard. If you need more just give us a call.

UNO Plus Tips

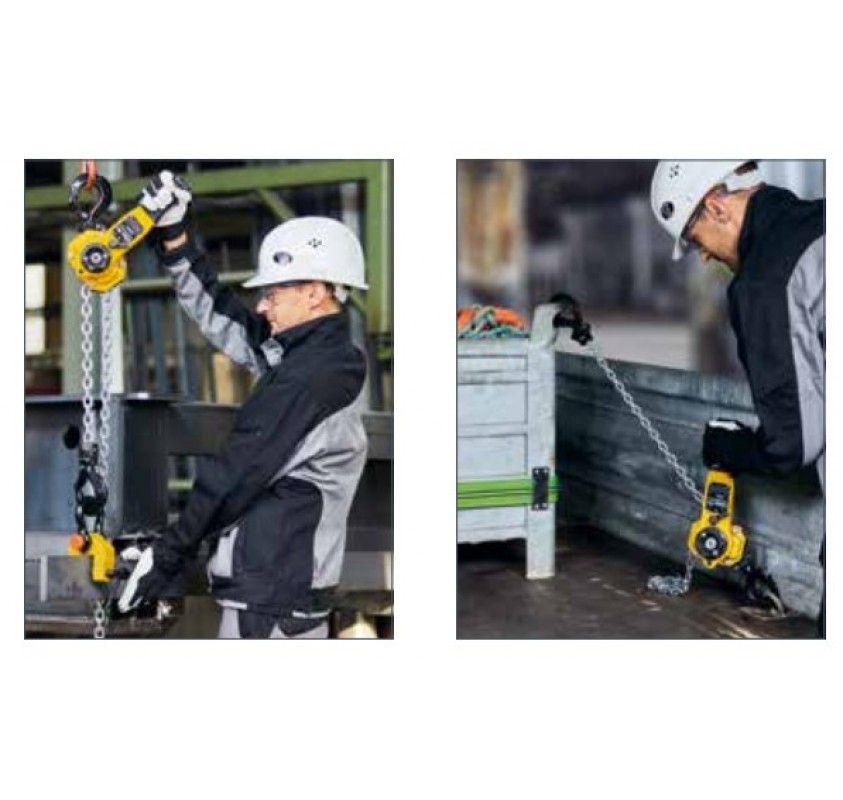

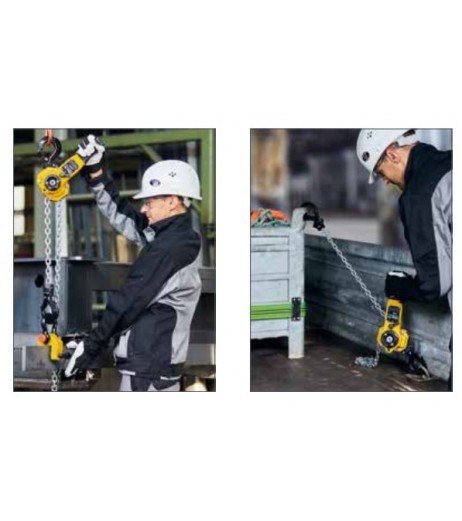

This versatile ratchet lever hoist must be used with a straight line from top and bottom hooks, without hindrance regardless of the orientation. Do not use for side/angled pulling. These hoists should not be used to pull free objects that are stuck.

Don't forget to do regular checks to ensure there are no apparent issues that could cause accidents. Always follow the manufacturers guidelines.

Similar Products

We have a number of ratchet lever hoists to choose from with differing lifting capacities. Each model can be used for lifting, pulling and tensioning in a straight line (not round corners).

Cable pullers or wire rope pulling machines are a little different, longer lengths can be achieved and may be used around sheaves or pulleys to further increase the WLL. They are capable of pulling heavier loads than loads that are lifted. For example if it can lift 800kg it can pull up to 1300kg.
